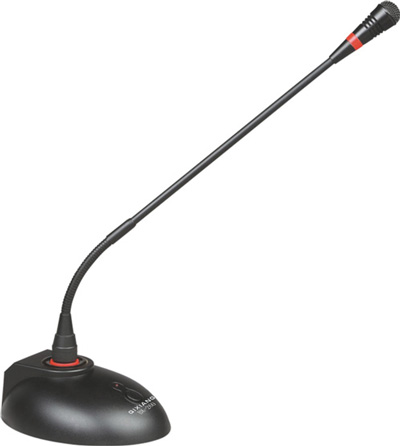

Gooseneck conference microphone cable BK-260
鹅颈式有线会议麦克风

Instructions
Parameter

The BK-260 microphone (3V/48V)
The microphone ON/OFF long life, high resistance to squelch boatlike switch
The microphone sound head is opened, the red indicator will light.
The Annex: wind sponge 1 /5m balance line 1
The capacitance type:capacitive
The point: cardioid
The output impedance: 75 ohms
The frequency response (Hz): 40Hz-16KHz
The sensitivity: -40dB ± 2dB
The power supply voltage (V): DC 3V/ phantom 48V automatic conversion
The reference pickup distance: 20-50cm
The low frequency attenuation: 125Hz 6dB/OCTAVE
The output impedance: 200 ohms
The maximum sound pressure: 135dB SPL 1KHz At1% T.H.D
The signal-to-noise ratio of 66dB.1KHz: AT PA
The dynamic range: 111dB.1KHz AT MA
The wire length: 5m
